RE29 Metal shaft rotary multi-way switch

RE29 Metal shaft rotary multi-way switch

  • Series:RE29
  • Format:See the following profile
  • Specifications

    Multi-way switch model: RE29 series
    ame:

    RE29 Metal Shaft Rotary Switch

    Main Specifications: Rated power:DC 30V 0.3A;
    Contact resistance:50mΩ Max ;
    Number of positions:2~12 ;
    Operating temperature:-10℃~70℃;
    Operting Life:More than 10,000 times;
    Product Features:

    2~12 positions available with clear sense of clicks;

    Available in various shaft options;

    Applications:

    Home appliances, amplifiers or other electronic products;

    The main functions are function switching, adjusting volume, and

    adjusting brightness.

    RE29 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1、Rotational torque :200~1000gf.cm
    2、Step angle :30°±3°

    TWO、ELECTRICAL CHARACTERISTIC
    1、Contact resistance :50mΩ Max
    2、Rated power :DC30V 0.3A
    3、Number of detent :2~12 detents
    4、Insulation resistance :100MΩ 1 Minute at DC 500V
    5、Dielectric voltage :1 Minute at DC 500V

    THREE、ENDURANCE CHARACTERISTIC
    1、Rotational life :10,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

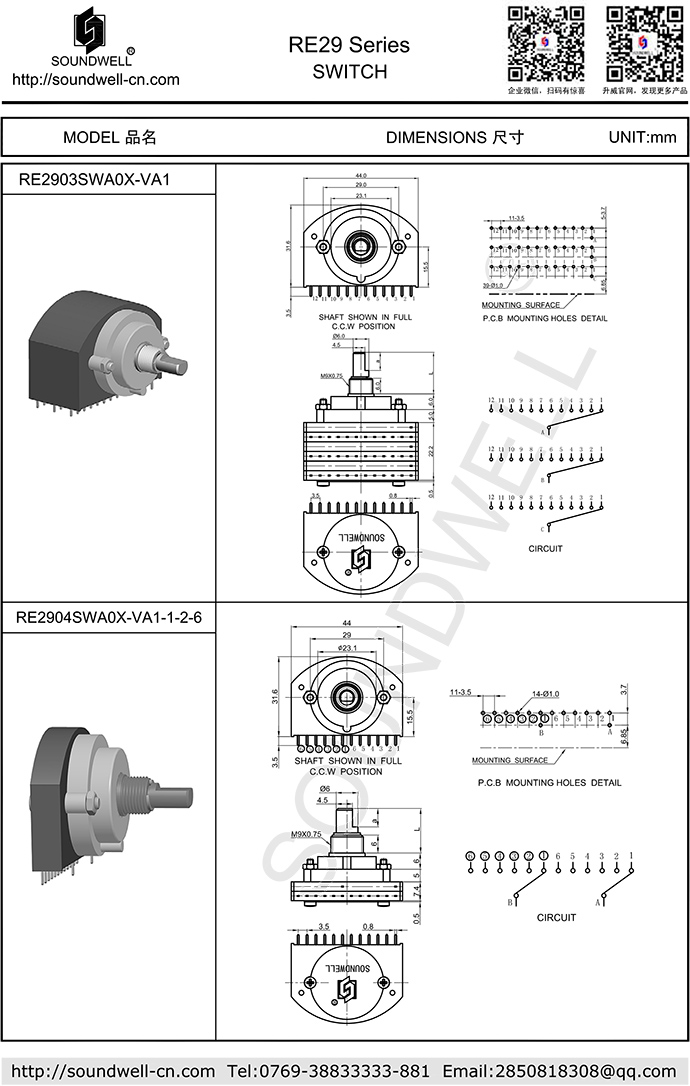

    DownloadRE291.pdf

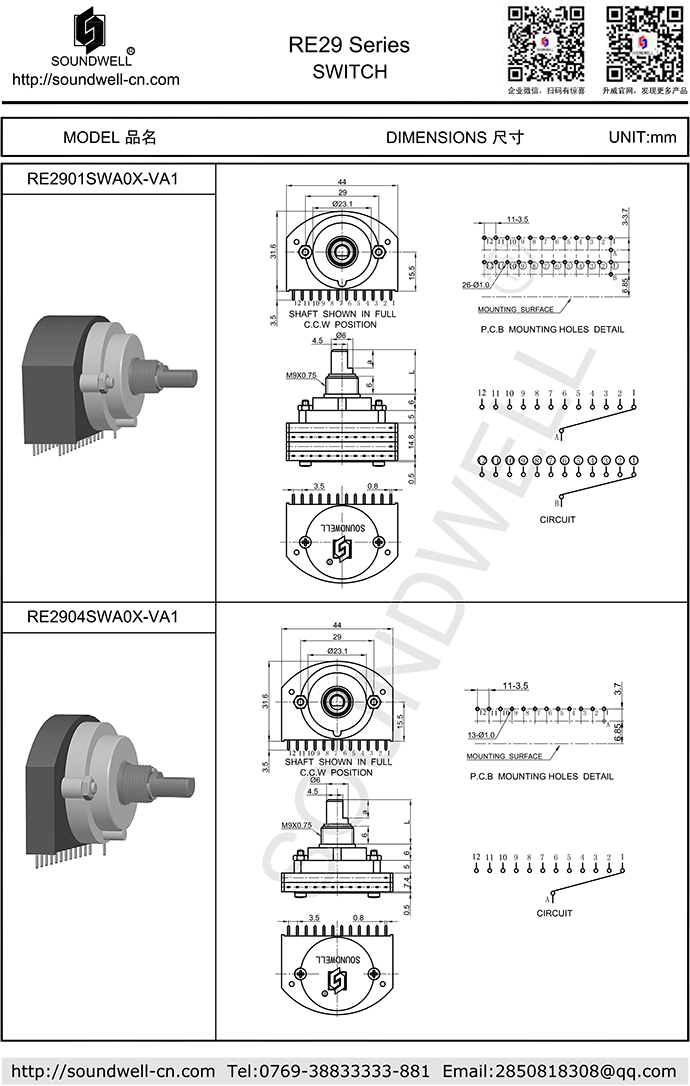

    DownloadRE292.pdf
