| Encoder model： | RJ16 |
| Name： | Metal handle rocker potentiometer |
| Main Specifications: | Dimensions：24mm； Rated power：0.0125W； Operating angle：60° Max； Operating temperature：-10℃～70℃； Rotational Life: 10 million times or more； |
| Product Features： | Long life, a good feel of operation, high accuracy in the reset return. |
| Applications： | Mainly applied to a game pad, electronic toys field; the main function of the game, selecting menus. |

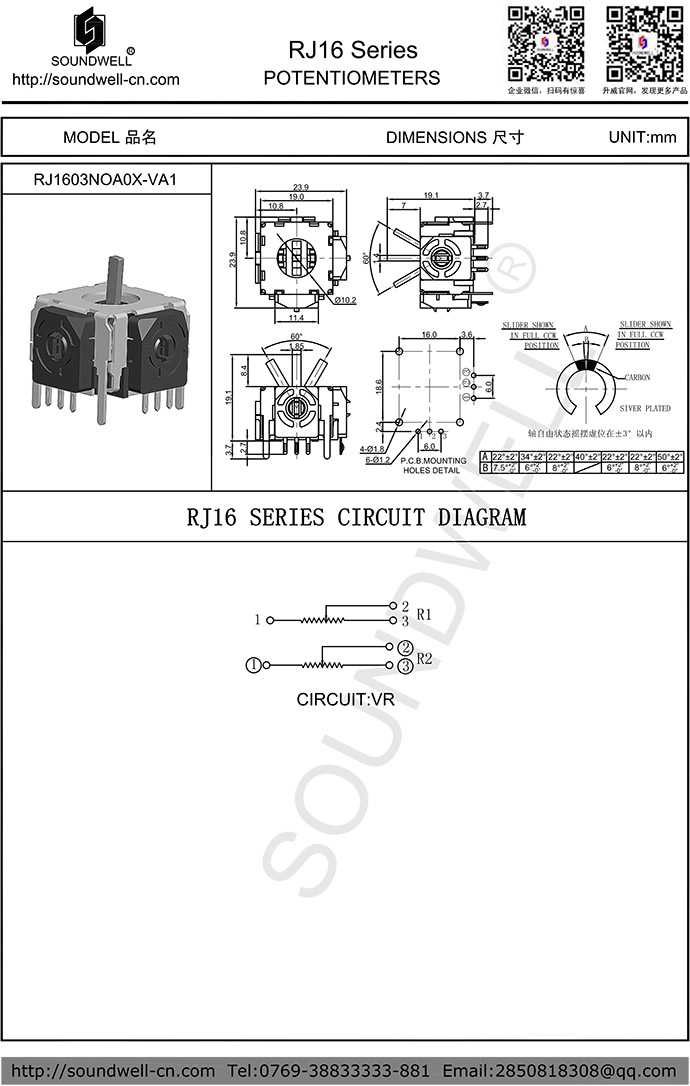

RJ16ProductSpecifications
ONE、MECHANICAL CHARACTERISTIC
1、Operating force of lever ：150～350 gf
2、Operating angle ：60° Max
TWO、ELECTRICAL CHARACTERISTIC
1、Rating power ：0.0125W
2、Maximum operating voltage：AC 50V DC 5V
3、Insulation resistance ：100MΩ 1 Minute at DC 250V
4、Dielectric voltage ：1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1、Rotational life ：100,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
