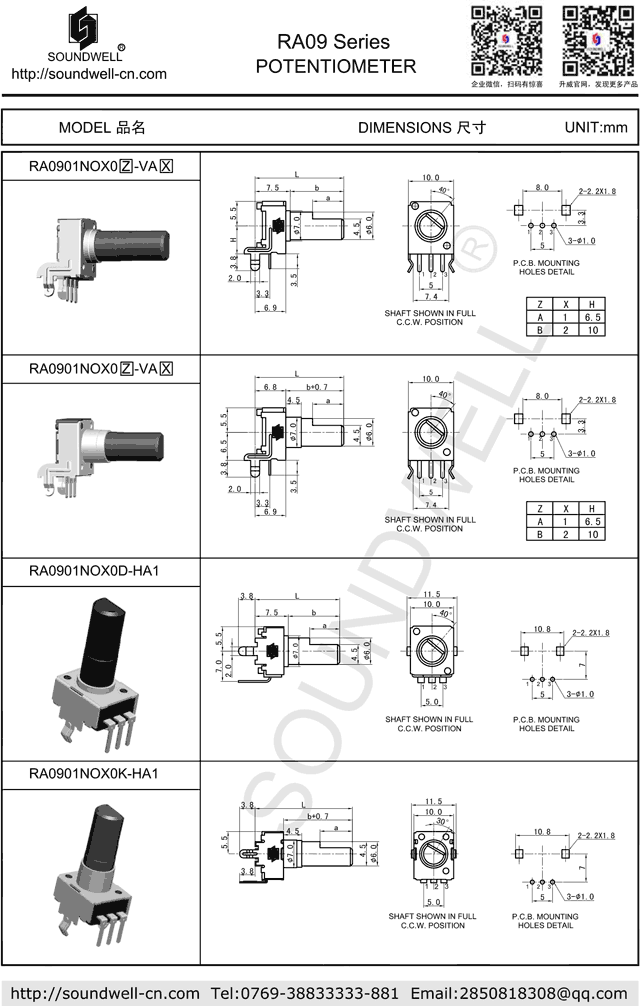

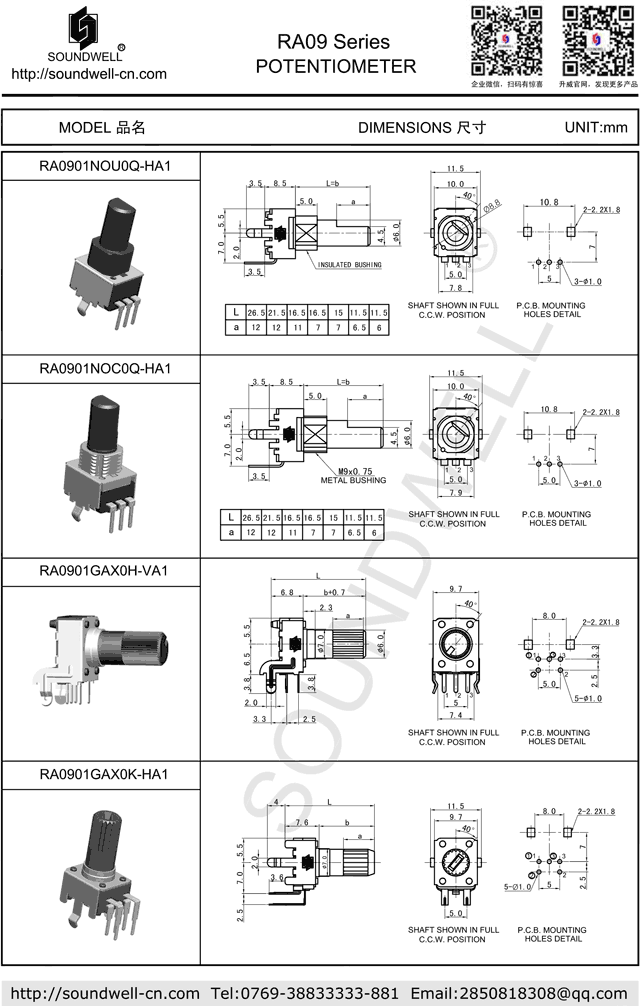

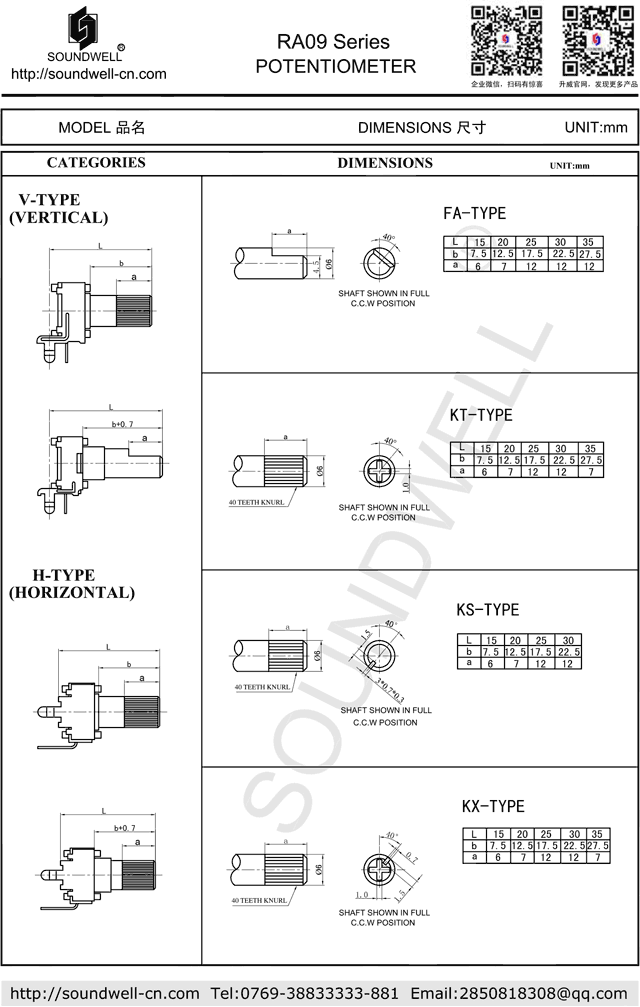

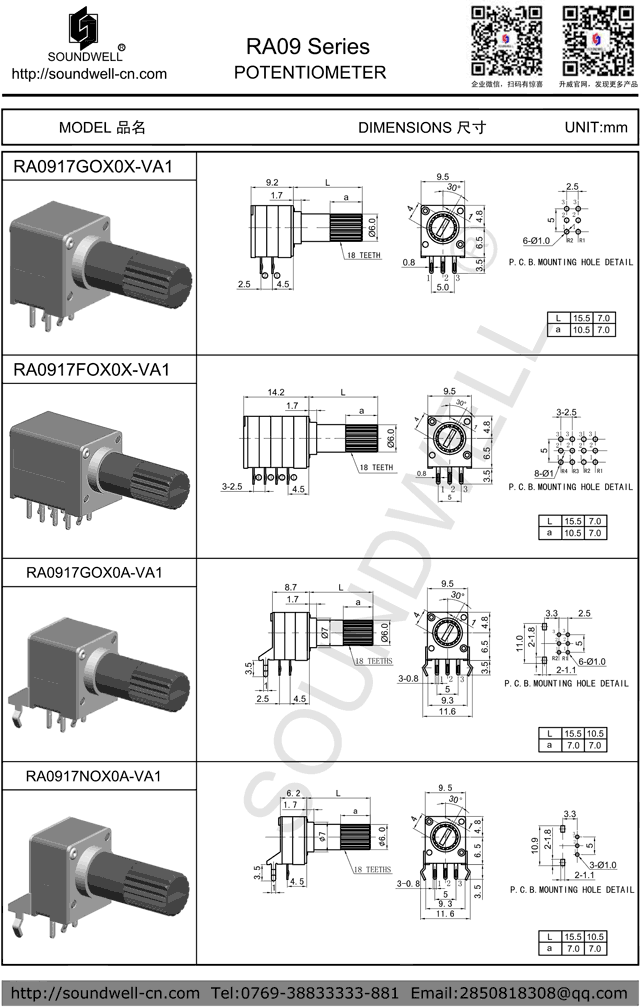

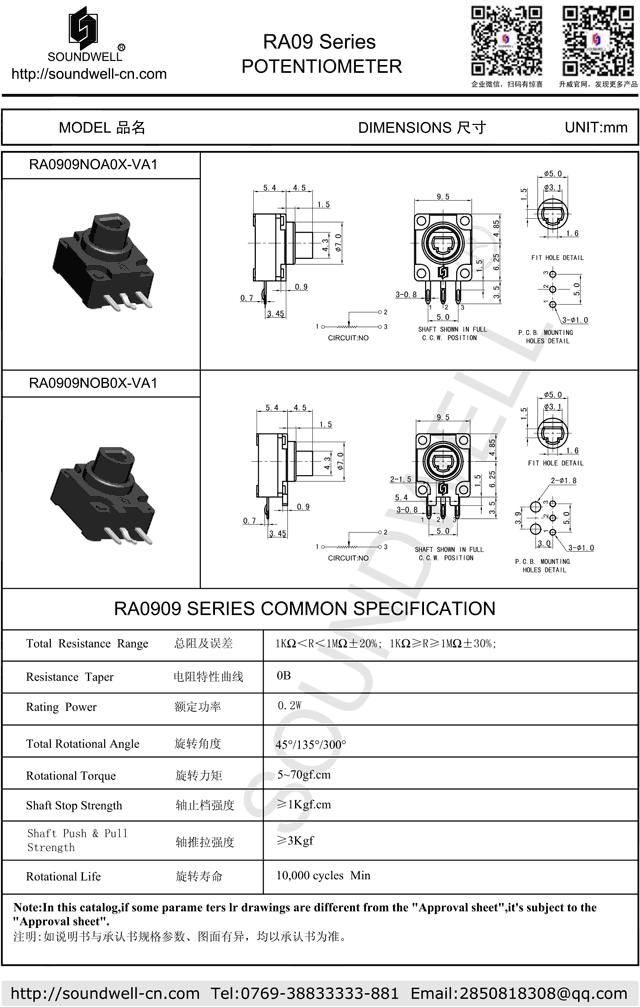

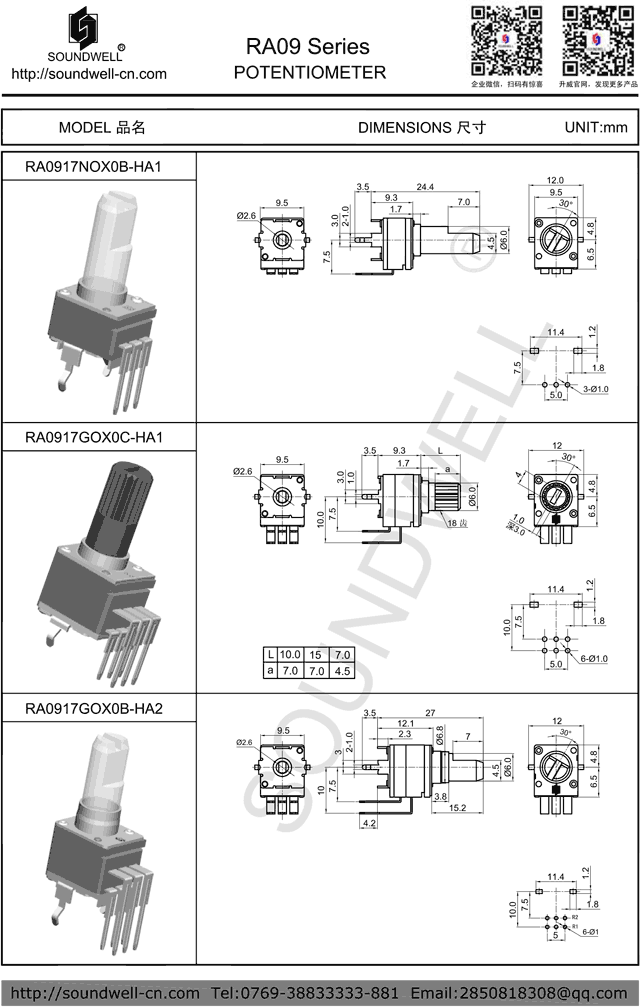

| Potentiometer model： | RA09 series |
| Name： | Insulated Shaft Rotary Potentiometer |
| Main Specifications: |
Total resistance error: ±20% Rotational life: 10,000 cycles Min |
| Product Features： |
Small size with stable performance; Insulated shaft design; Shaft length and shape can be adjusted; Various mounting options to choose from. |
| Applications： |
Mainly suitable for mixers, multi-coal body audio, power amplifiers and other electronic equipment, it can also be used in household appliances. The main functions are to adjust the volume, balance, pressure, temperature, dimming and other functions. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 10~100gf.cm
2. Total Rotational Angle: 280±10°/300±10°
3. Shaft Stop Strength: ≥3.5Kgf.cm
4. Shaft Wobble (mm p-p): 0.7*L/20 Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Power Rating: 0.05W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
