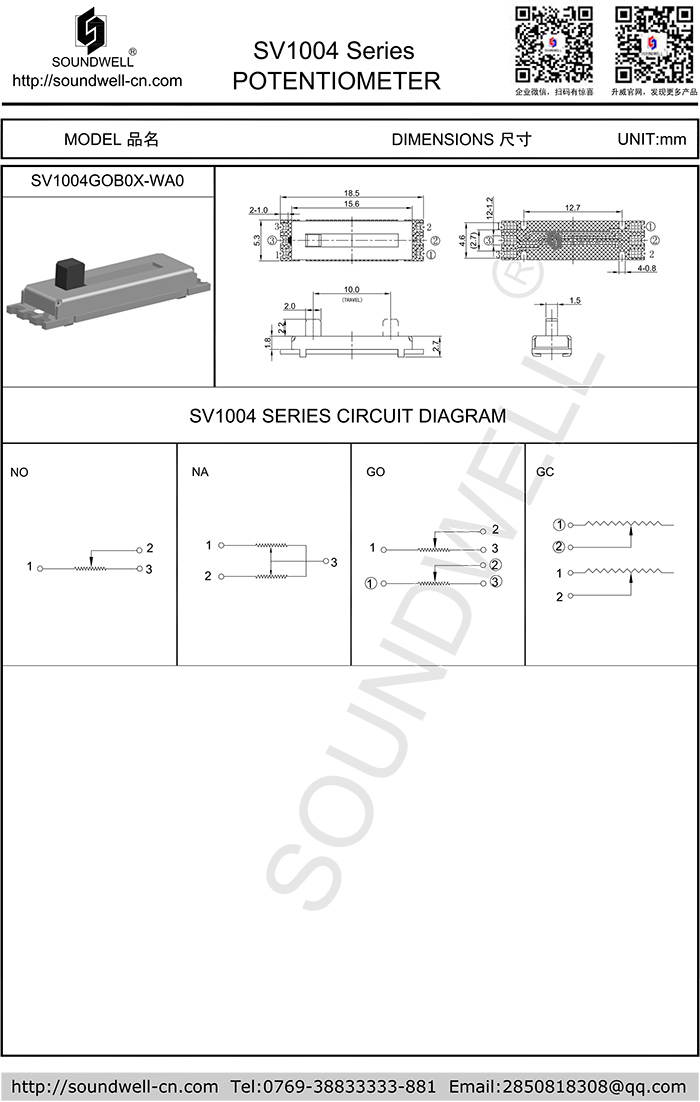

Potentiometer model： |
SV1004 series |
|
| Name: | 10mm Travel Slide Potentiometer | |
| Applications： |
Volume control for headphones and other audio products; |
|
| Product Features: |
Paste high temperature paper; Tape packaging; Automatically patched; |
|
| Main Specifications: |
Travel: 10mm; Resistance tolerance: ±20%; Rated power: 0.01W; Operating temperature: -10℃ ~70℃; Operating life: 5,000 Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Operating Force: 10~200gf.cm
2. Slide Travel: 10±0.5mm
3. Lever Stop Strength: ≥3.0Kgf.cm
4. Lever Wobble (mm p-p): 2(2*L/25) Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A
3. Rated Power: 0.01W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC100V
THREE、ENDURANCE CHARACTERISTIC
1. Operating life: 5,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
