| Potentiometer model： | RA18 series |
| Name： |
RA18 Insulated Shaft Rotary Potentiometer |
| Main Specifications: | TDimensions: 18mm Rated power: 0.05W; Rated voltage: DC 10V; Residual resistance: ≤20Ω; Rotation angle: 270°; Rotary torque: 200～400gf.cm; Stop strength: ≥8Kgf.cm; Linear error: ≤±3%; Working temperature: -40℃～80℃; Number of positions: 5/17 posiitons Rotational life: 30,000 cycles Min; |
| Product Features： |
Long life and stable performance; |
| Applications： |
Automotive air conditioning, industrial equipment and other fields |
RA18 Product Specifications
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 200～400 gf.cm
2. Mechanical rotational angle: 270°
3. Number of positions: 5 positions/17 posiitons
TWO、ELECTRICAL CHARACTERISTIC 1. Rated Power: 0.05W
2. Maximum operating voltage: DC 10V
3. Linear error: ≤±3%
4. Insulation resistance: 100MΩ 1 Minute at DC 250V
5. Dielectric voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

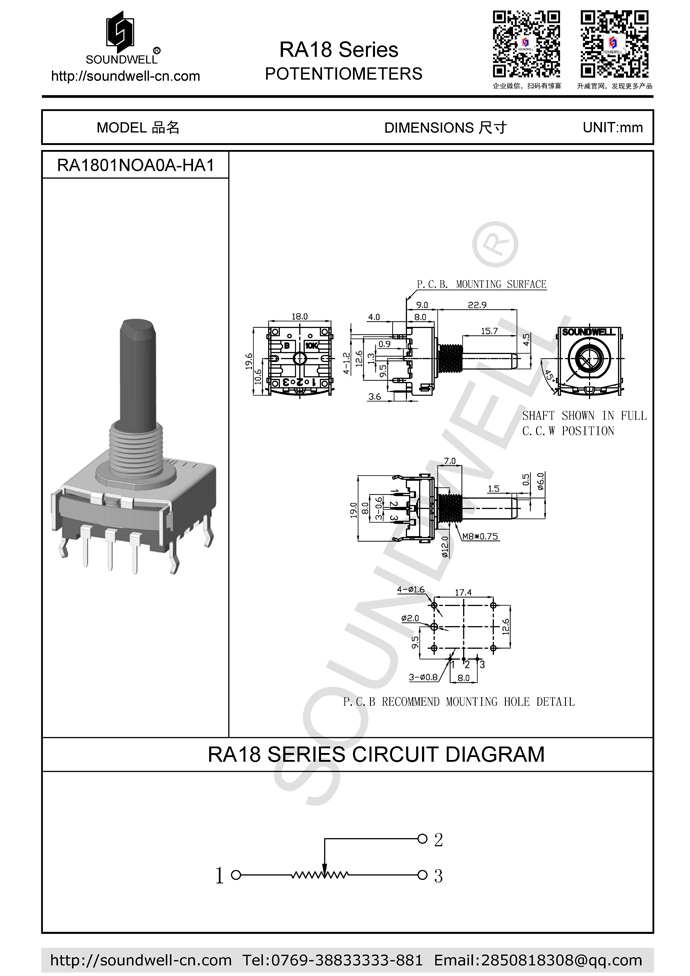

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
