MR42 Magnetic Potentiometer

Potentiometer model：	MR42 series
Name：	MR42 Magnetic Rotary Potentiometer
Main Specifications:	Rotation angle: 0~360°; Input voltage: DC 5V; Output voltage: DC 0~5V; Output current: 15mA max; Rotation torque: 10~150gf; Operating temperature: -10℃ ~70℃; Operating life: 1,000,000 cycles Min;
Product Features：	Long life; Rotation angle, start and end voltage can be customized; The linear accuracy is less than 1.5%.
Applications：	Traditional potentiometer application field can be.

MR42 Product Specifications

ONE、MECHANICAL CHARACTERISTIC

1. Rotation torque: 10~150gf Max
2. Rotation angle: 0~360°

TWO、ELECTRICAL CHARACTERISTIC

1. Output voltage: DC 0~5V;
2. Output current: 15mA max
3. Rated voltage: DC 5V
4. Linear error: 1.5%

THREE、ENDURANCE CHARACTERISTIC

1. Operating life: 1,000,000 cycles Min

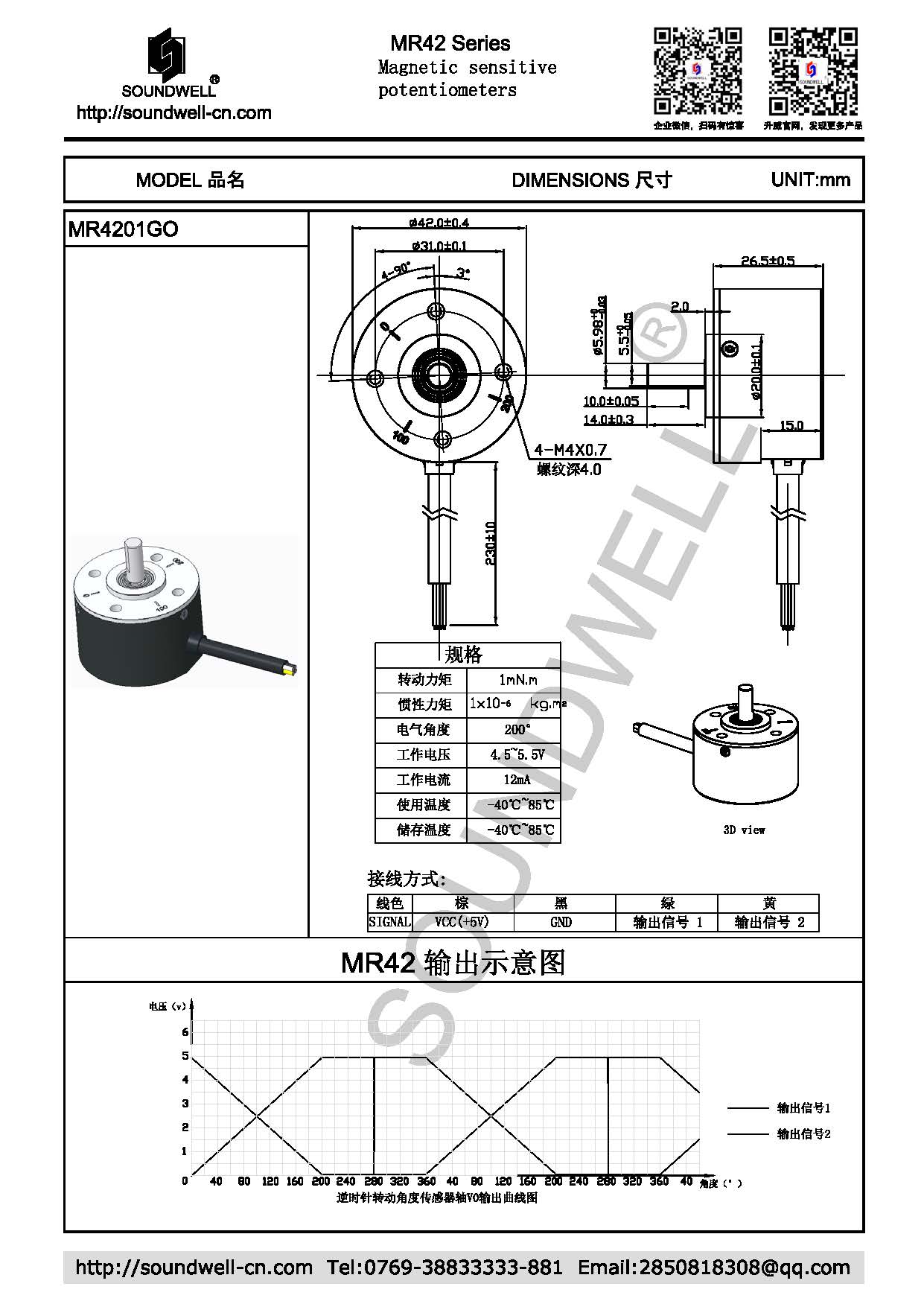

Note: In this catalog, if some parameters or drawings are different from the "Approvalsheet", it's subject to the "Approval sheet".
