| Encoder Model: | EG38 series |
| Name: |
EG38 Rotary Optical Incremental Encoder |
| Main Specifications: | Dimension: 38mm； Number of detent: Continuous rotation; Output resolution:100P, 200P, 300P, 360P, 400P, 600P, 720P, 800P, 900P, 1000P ect. (Customizable) Working temperature: -20℃～85℃; Input voltage: 5V; Protection Level: IP54 Reverse Polarity Protection; Output signal: A+, B+; Insulation resistance: 50MΩ 1 Minute at DC 100V; Dielectric voltage: 1 Minute at AC 250V; Rotation life: 1,000,000 cycles Min; Electrical life: 1000 hours Min; |
| Features: |
High precision, high safety performance, rotary servo industrial encoder. |
| Applications: |
Mainly suitable for control and detection of displacement, speed, position, and other aspects in the field of rotational servo industrial control. |
ONE、MECHANICAL CHARACTERISTIC
1. Friction torque: ≤1 mN•m (@ Specification Ta=20℃ The temperature is 20℃）
2. Permissble operation rotational speed: ≤300rpm
3. Moment of inertia: ≤0.68 kg•mm²
4. Allowable shaft load: Radial: 140N Max, Axial: 70N Max.
5. Shaft Wobble (mm p-p): 0.2mm Max
TWO、ELECTRICAL CHARACTERISTIC
1. Insulation resistance: DC100V, more than 50MΩ
2. Dielectric voltage: 1 Minute at AC 250V
3. Resolution: 100P, 200P, 300P, 360P, 400P, 600P, 720P, 800P, 900P, 1000P ect. (Customizable)
4. ESD test: Air discharge: ±2KV, Contact discharge: ±2KV
5. Output signal: A+、B+
6. Rated voltage: DC5V
7. Output circuit: TTL
THREE、ENDURANCE CHARACTERISTIC
1. Mechanical life: 1,000,000 cycles Min
2. Electrical life:1000 hours Min

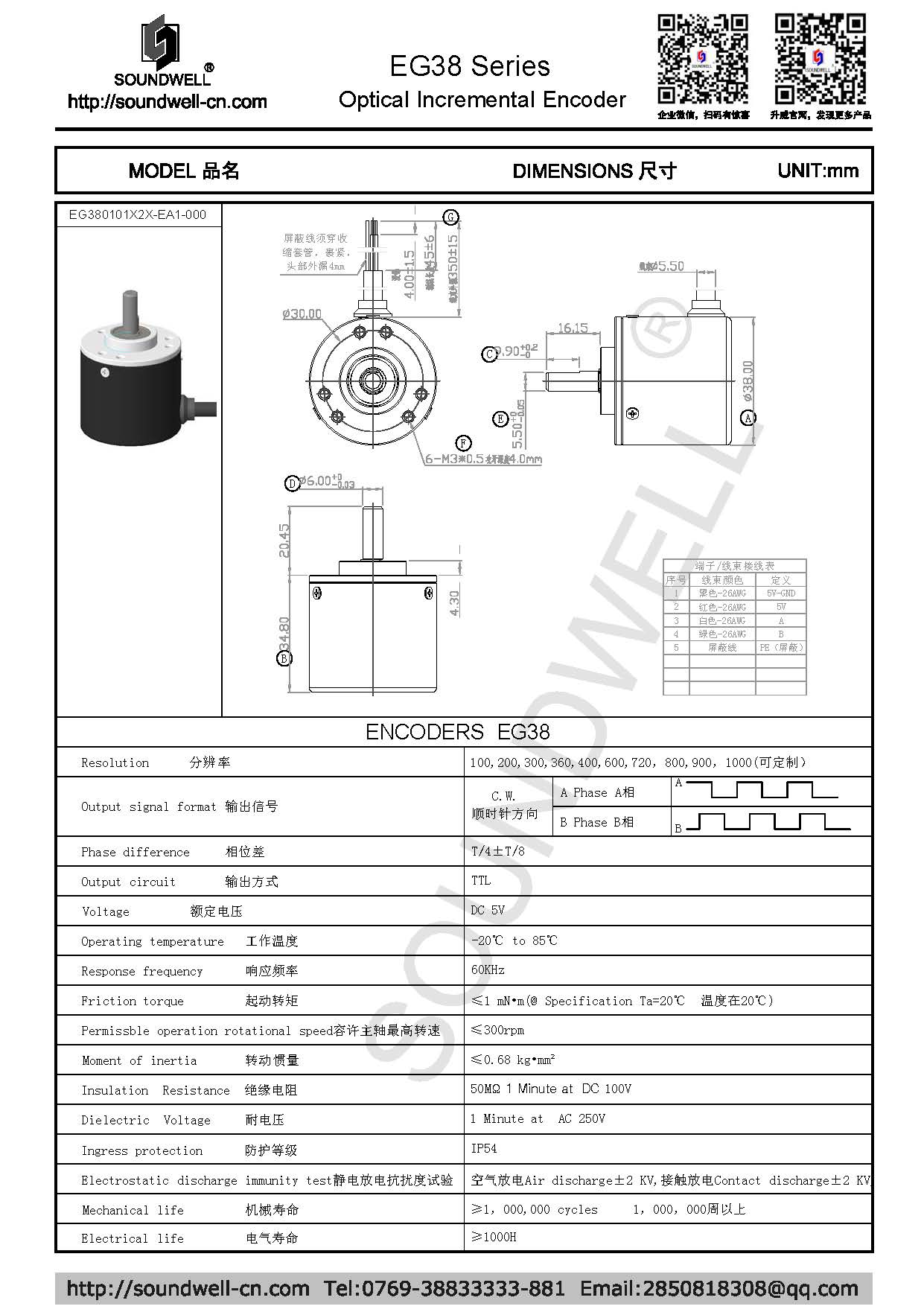

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
