EC18 Hollow Shaft Incremental Encoder

EC18 Hollow Shaft Incremental Encoder

  • Series:EC18
  • Format:See the following profile
  • Specifications

    Encoder model: EC18 series
    Name:

    EC18 Hollow Shaft Rotary Encoder

    Main Specifications: Dimensions: ∮18mm
    Rated voltage: DC 5V
    Number of detent: 18
    Pulses: 9
    Operating temperature: -40°C~85°C

    Rotational life: 50,000 cycles Min

    Product Features:

    Low profile, surface-mount;

    Hollow encoder to enable flexible design in the center ring.

    Applications:

    E-cigarettes, audio products, household appliances and other related    electronic devices; Mainly used to adjust the menu, temperature, volume and frequency, etc.

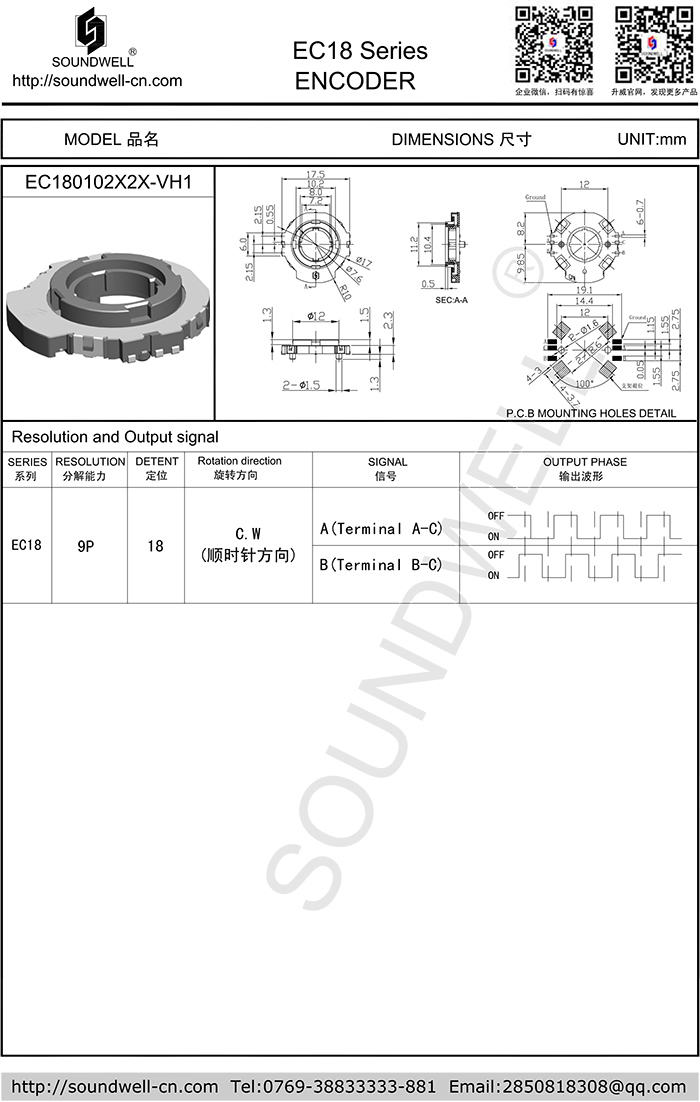

    EC18  Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational Torque: 50±20gf.cm
    2. Number of detent: 18 (Step angle: 20±3°)
    3. Shaft Wobble: 0.2 mm Max
    4. Shaft play: 4° Max
    5. Surface evenness: 0.1mm Max

    TWO、ELECTRICAL CHARACTERISTIC
    1. Resolution: 9 pulses/360°
    2. Phase difference: ≥8 ms
    3. Rated voltage: DC 5V
    4. Insulation Resistance: 50MΩ 1 Minute at DC 250V
    5. Dielectric Voltage: 1 Minute at AC 250V

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational life: 50,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
