RS1704 Multiplex switch

RS1704 Multiplex switch

  • Series:RS1704
  • Format:See the following profile
  • Specifications

    Multi-way switch model: RS1704
    name: Plastic shaft rotary switch
    Main specifications:

    Dimensions: 17mm;
    Rated power: DC16V 0.3A;
    Contact resistance: 100mΩ Max;
    Number of positions: 2 ~ 7;
    Operating temperature: -10 ℃ ~ 70 ℃;
    Operating life: more than 10,000 times;

    Features:

    2~7 positions available with clear sense of clicks;

    Available in various shaft options;

    Application areas:

    Home appliances such as micro- wave ovens, washing machines,

    audio devices, health care systems or other electronic products;

    The main functions are function switching, speed adjustment,

    temperature adjustment and so on.

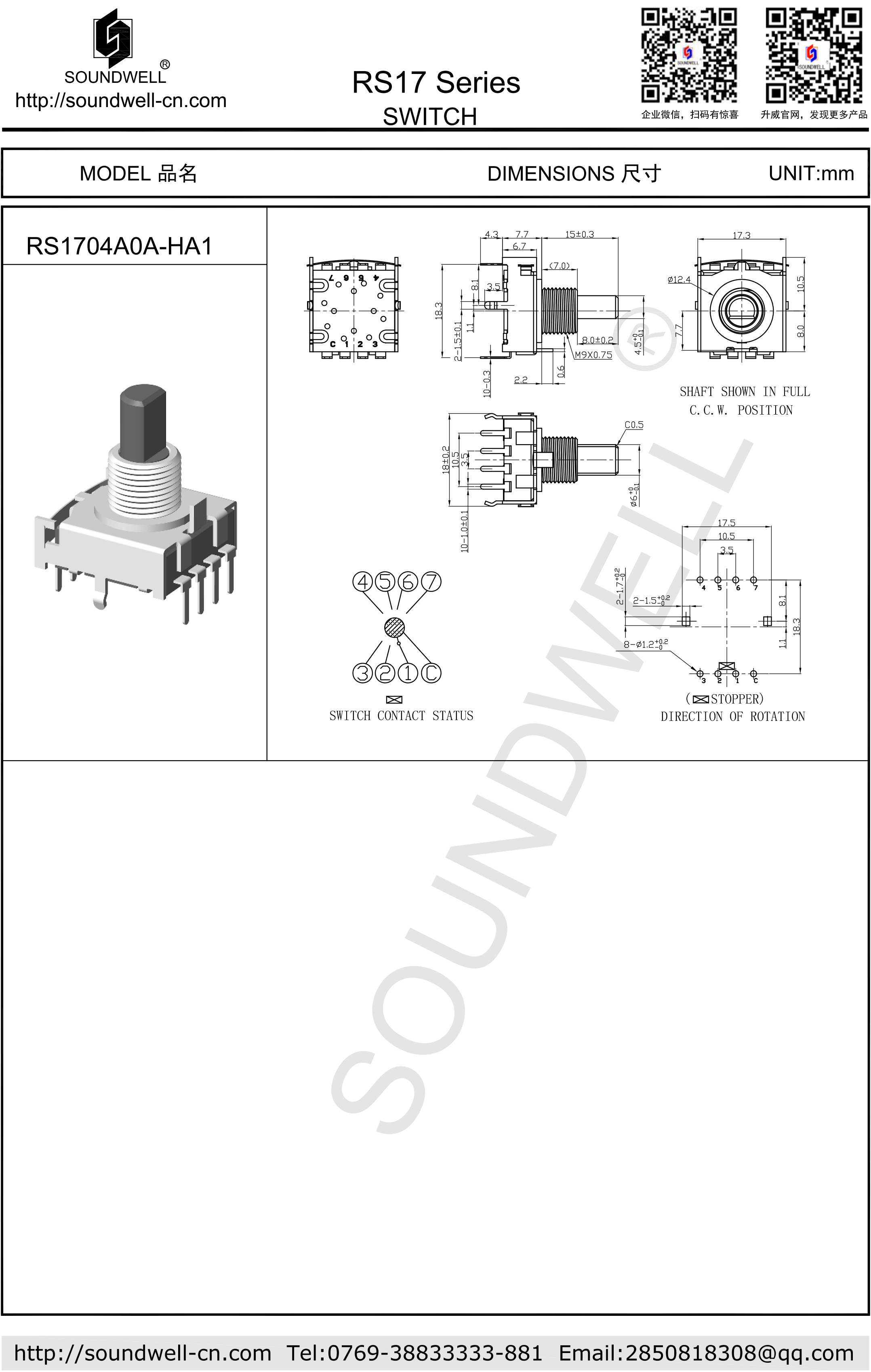

    RS1704 Product Specifications

    一、MECHANICAL CHARACTERISTIC
           1、Rotational torque  :100~400gf.cm
           2、Step angle :45°±3°

    二、ELECTRICAL CHARACTERISTIC
           1、Contact resistance  :100mΩ Max
           2、Rated power :DC16V 0.3A
           3、Number of detent :2~7
           4、Insulation resistance :100MΩ 1 Minute at  DC 100V
           5、Dielectric voltage :1 Minute at  AC 100V

    三、ENDURANCE CHARACTERISTIC
           1、Rotational life :10,000 cycles Min
    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
