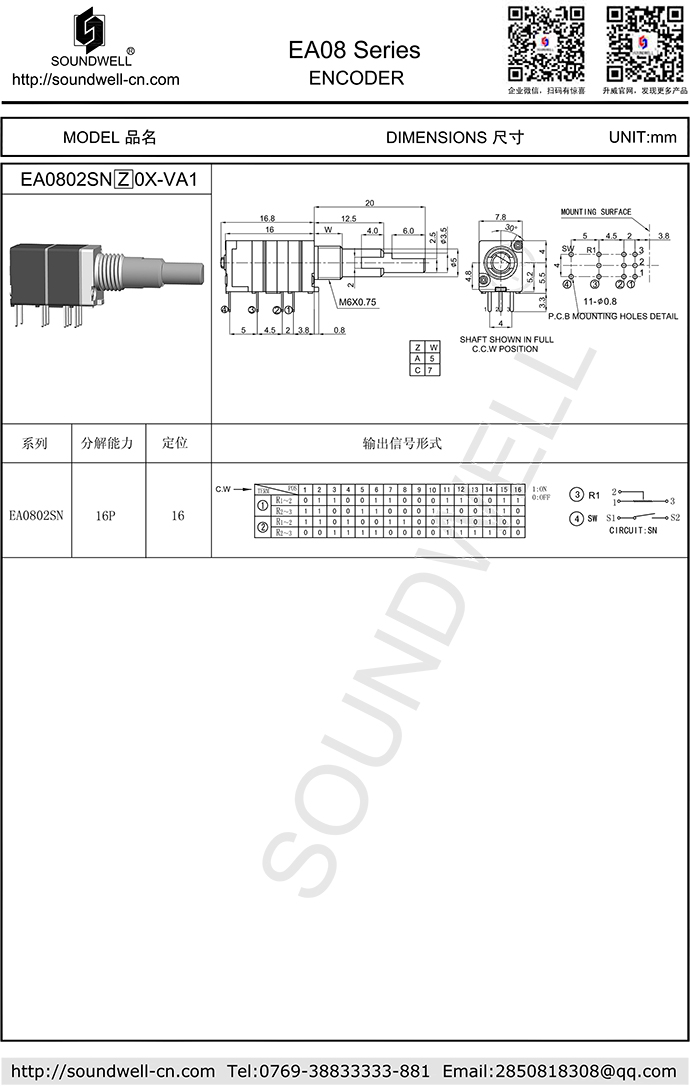

Encoder model: | EA08 |
Name: | Metal Shaft absolute encoder |
Main Specifications: | Dimensions:7.8mm; Rated voltage:DC 12V; Location Number:16; The number of pulses:16; Operating temperature:-40℃~80℃; Service life:30000 More than times; Switch life:30000 More than times; |
Product Features: | There potentiometer with rotary switch three functions of logical encoders, good sealing, small size, shape and axial length optional. |
Applications: | Mainly used walkie-talkie market, played the switch-off, adjust the volume, frequency modulation effect. |
ONE、MECHANICAL CHARACTERISTIC
1、 Detent Torque :100-300gf.cm
2、Number and position of detent :16
3、Shaft wobble (mm p-p) :1.0 x L / 30mm p-p (L:)
TWO、ELECTRICAL CHARACTERISTIC
1、Resolution : 16/300°
2、Rated voltage : DC 12V
3、Insulation Resistance :10MΩ 1 Minute at DC 50V
4、Dielectric Voltage :1 Minute at AC 50V
5、Switch rotation angle:50°±5°
6、Switch action :30-250gf.cm
THREE、ENDURANCE CHARACTERISTIC
1、Rotational life :30,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
