EC56-HA1 Hollow Shaft Encoder

EC56-HA1 Hollow Shaft Encoder

  • Series:
  • Format:See the following profile
  • Specifications

    Encoder model:

    EC56-HA1 series
    Applications: Audio, electric fans, air fryers and other related electronic devices;
    Product Features:

    Low profile with more space for customer;

    Smooth rotational feel and highly reliable performance;

    Hollow encoder to enable flexible design in the center ring.

    Functions:

    Mainly used to adjust volume, adjust temperature, frequency

    modulation, and function switching.

    Main Specifications:

    Dimensions: φ56mm

    Rated voltage: DC 5V

    Number of detent: 30

    Pulses: 15

    Working temperature: -40℃~85℃

    Rotational life: 30,000 cycles Min

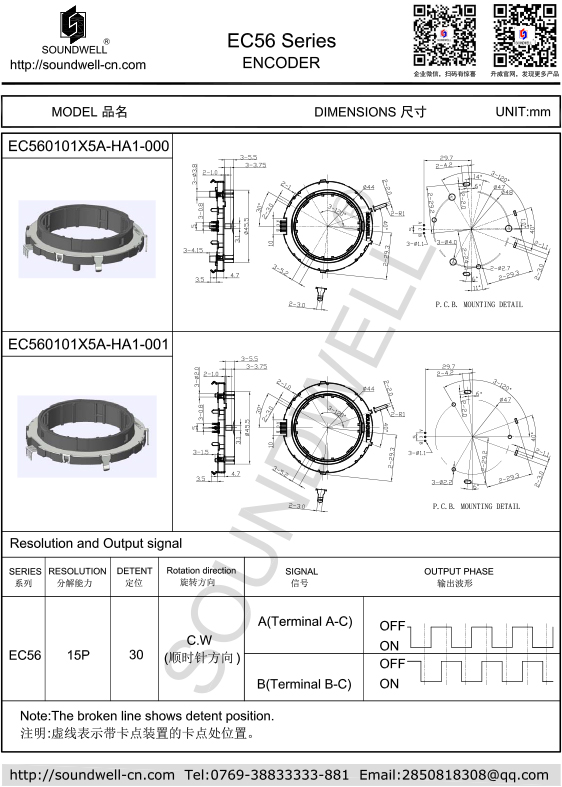

    EC56-HA1 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational torque: 100~300gf.cm

    2. Rotational angle: 360°

    3. Number of detent: 30 (Step angle: 12±3°)

    TWO、ELECTRICAL CHARACTERISTIC
    1. Resolution: 15 pulses/360°
    2. Phase difference: ≥6ms
    3. Rated voltage: DC 5V
    4. Insulation resistance: 100MΩ 1 Minute at DC 500V

    5. Dielectric voltage: 1 Minute at AC 300V

    THREE、ENDURANCE CHARACTERISTIC
    1、Rotational life: 30,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
