EC050103 series

Soundwell Product

Soundwell Electronic Products (Guangdong) Co., Ltd.

TEL：+86(769)-38833333-881
Fax：sw@soundwell-cn.com
MAIL：soundwell868@soundwell.cn
Address：Guangdong Province Dongguan city Tangxia Town Phoenix Gang Sheng Wei Industrial Park

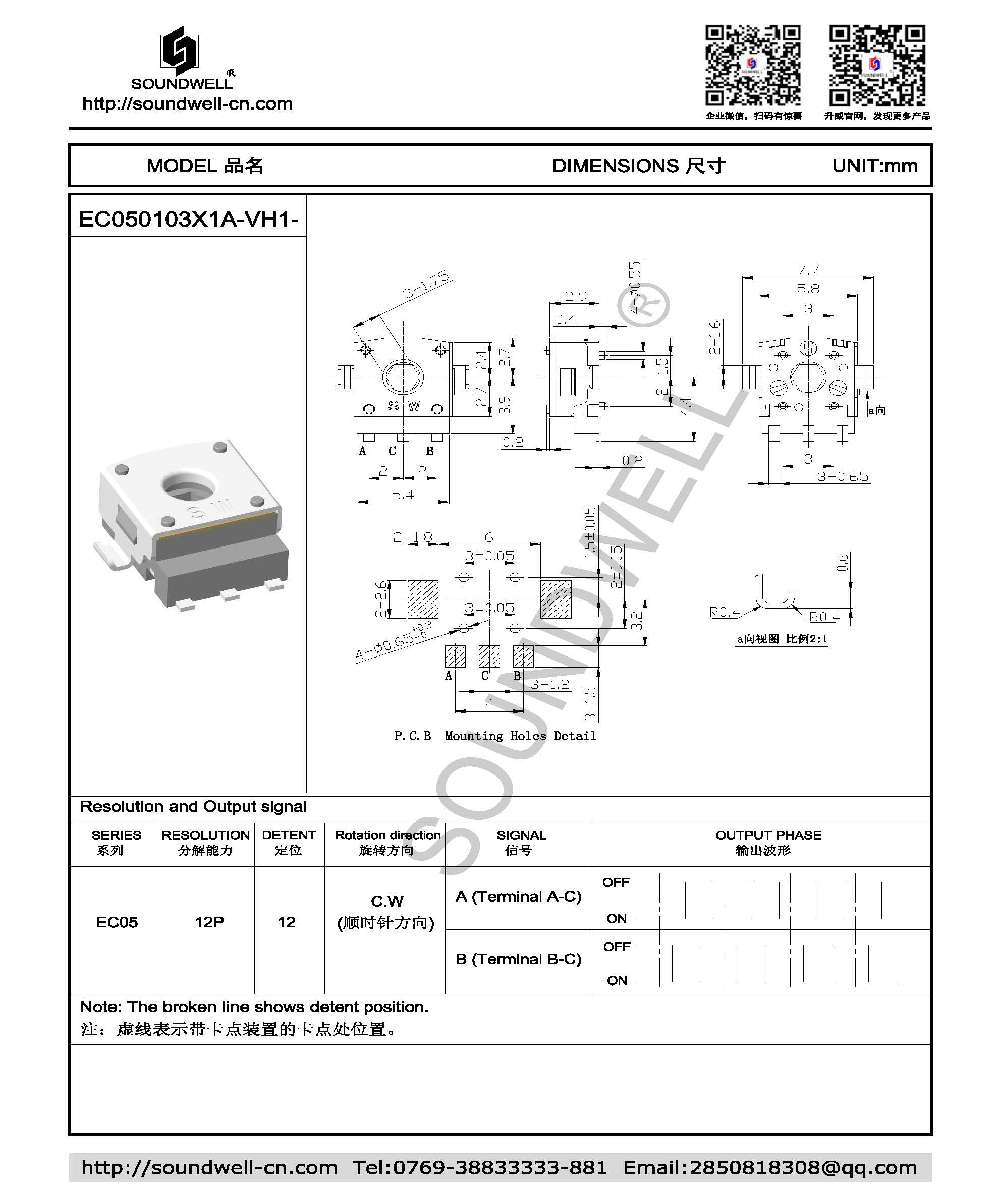

EC050103 Through shaft Incremental Encoder

Series：

Format：See the following profile

Specifications　　

Encoder model：	EC050103 series
Applications：	Smart watch, earphone and other related electronic devices.
Product Features:	Small size with 6.6mm5.8mm2.9mm; Available for SMT reflow soldering.
Functions：	Mainly used to control volume and function switching.
Main Specifications:	Rated voltage: DC 5V Number of detent: 18 Pulses: 9 Rotational torque: 5-30 gf.cm. Working temperature: -40℃~85℃; Rotational life: 30,000 cycles Min;

EC050103 Product Specifications

ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100~300gf.cm

2. Number of detent: 30 (Step angle: 12±3°)

TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 12 pulses/360°
2. Phase difference: ≥3ms
3. Rated voltage: DC 5V

4. Insulation resistance: 50MΩ 60s±5s at DC 50V

5. Dielectric voltage: AC 50 V 60s±5s

THREE、ENDURANCE CHARACTERISTIC
1. Rotational life ：30,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
