EC050104 Through Shaft Incremental Encoder

EC050104 Through Shaft Incremental Encoder

  • Series:EC系列
  • Format:See the following profile
  • Specifications

    Encoder model:

    EC050104 series

    Main Specifications::

    Smart watches, earphone and other small electronic products.


    Product Features:

    Small size with through shaft;

    Available for SMT reflow soldering;

    Gentle hand feel and clear positioning.

    Functions:

    Mainly used to control volume and function switching.

    Main Specifications:

    Rated voltage: DC 5V

    Number of detent: 12

    Pulses: 12

    Rotational torque: 30gf.cm Max

    Working temperature: -40℃~85℃

    Rotational life: 100,000 cycles Min;

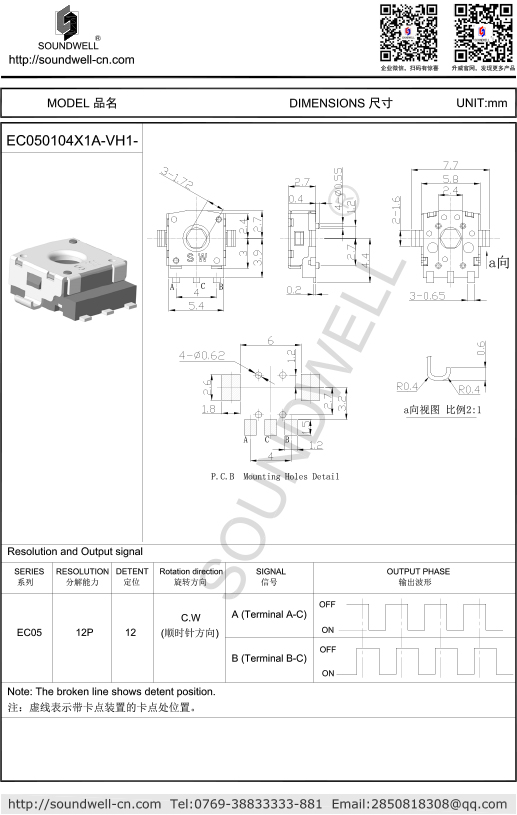

    EC050104 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Rotational torque: 30 gf.cm Max

    2. Number of detent: 12 (Step angle: 30±3°)

    TWO、ELECTRICAL CHARACTERISTIC
    1. Resolution: 12 pulses/360°

    2. Phase difference: ≥3ms

    3. Rated voltage: DC 5V

    4. Insulation resistance: 50MΩ 60s±5s at DC 50V

    5. Dielectric voltage: AC 50 V  60s±5s

    THREE、ENDURANCE CHARACTERISTIC
    1、Rotational life: 10,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
