APS碳化硅二极管选型表
|
型号 |
品牌 |
VDC |
IF (TC=135℃) |
VF (TJ=25℃)*Type |
VF (TJ=25℃)*Max |
单/双芯片 |
包装 |
|
ACD06PS065C |
APS |
650V |
6A |
1.4V |
1.8V |
单 |
T0220 |
| ACD10PS065C | APS | 650V | 10A | 1.4V | 1.8V | 单 | T0220 |
| ACD20PD065B | APS | 650V | 20A | 1.4V | 1.8V | 双 | T0247 |
| ACD20PS065C | APS | 650V | 20A | 1.4V | 1.8V | 单 | T0247 |
| ACD25PS065C | APS | 650V | 25A | 1.4V | 1.8V | 单 | T0247 |
| ACD40PD065B | APS | 650V | 40A | 1.5V | 1.8V | 双 | T0247 |
| ACD50PD065B | APS | 650V | 50A | 1.5V | 1.8V | 双 | T0247 |
| ACD05PS120C | APS | 1200V | 5A | 1.5V | 1.8V | 单 | T0220 |
| ACD10PS120C | APS | 1200V | 10A | 1.5V | 1.8V | 单 | T0220 |
| ACD10PD120B | APS | 1200V | 10A | 1.5V | 1.8V | 双 | T0247 |
| ACD12PS120C | APS | 1200V | 12A | 1.5V | 1.8V | 单 | T0220 |
| ACD15PS120C | APS | 1200V | 15A | 1.4V | 1.8V | 单 | T0220 |
| ACD20PS120C | APS | 1200V | 20A | 1.5V | 1.8V | 单 | T0220 |
| ACD20PS120A | APS | 1200V | 20A | 1.5V | 1.8V | 单 | T0247 |
| ACD20PS120E | APS | 1200V | 20A | 1.5V | 1.8V | 单 | D2PAK |
| ACD20PD120B | APS | 1200V | 20A | 1.5V | 1.8V | 双 | T0247 |
| ACD25PD120B | APS | 1200V | 25A | 1.5V | 1.8V | 双 | T0247 |
| ACD30PS120A | APS | 1200V | 30A | 1.4V | 1.8V | 单 | T0247 |
| ACD30PD120B | APS | 1200V | 30A | 1.4V | 1.8V | 双 | T0247 |
| ACD40PD120B | APS | 1200V | 40A | 1.4V | 1.8V | 双 | T0247 |
| ACD60PD120B | APS | 1200V | 60A | 1.5V | 1.8V | 双 | T0247 |
| ACD06PS170C | APS | 1700V | 6A | 1.4V | 1.8V | 单 | T0220 |
| ACD12PD170B | APS | 1700V | 12A | 1.4V | 1.8V | 双 | T0247 |
| ACD10PS170A | APS | 1700V | 10A | 1.5V | 1.8V | 单 | T0247 |
| ACD20PD170B | APS | 1700V | 20A | 1.5V | 1.8V | 双 | T0247 |
| ACD03PS330N | APS | 3300V | 3A | 1.7V | 2.0V | 单 | 芯片 |
| ACD03PS330A | APS | 3300V | 3A | 1.7V | 2.0V | 单 | T0247 |

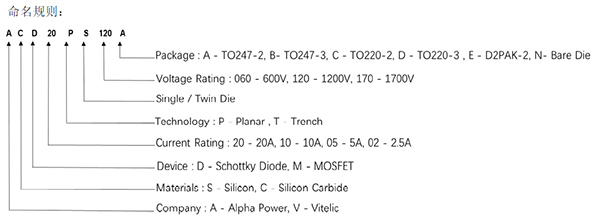

碳化硅二极管命名规则

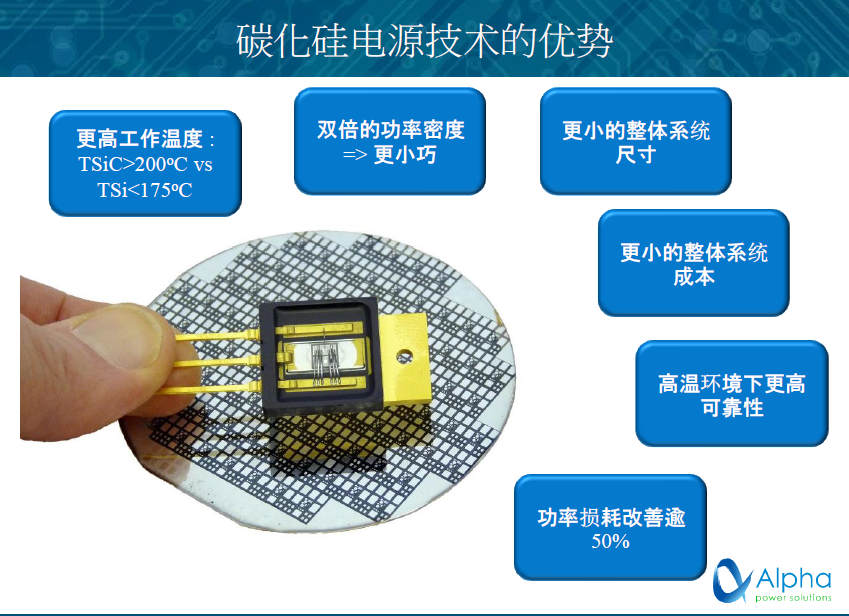

碳化硅二极管,sci二极管,碳化硅管的优势是什么?
碳化硅二极管大家又叫sci二极管,碳化硅管,碳化硅肖特基二极管,碳化硅功率二极管等,它有什么优势?
整体说来如下6个优势更受设计师的青睐:
1.更高工作温度:TSiC＞200℃ vs TSi＜175℃ ;
2.双倍的功率密度→更小巧 ;
3.更小的整体系统尺寸 ;
4.更小的整体系统成本 ;
5.高温环境下更高可靠性 ;
6.功率损耗改善逾50% .
.png)

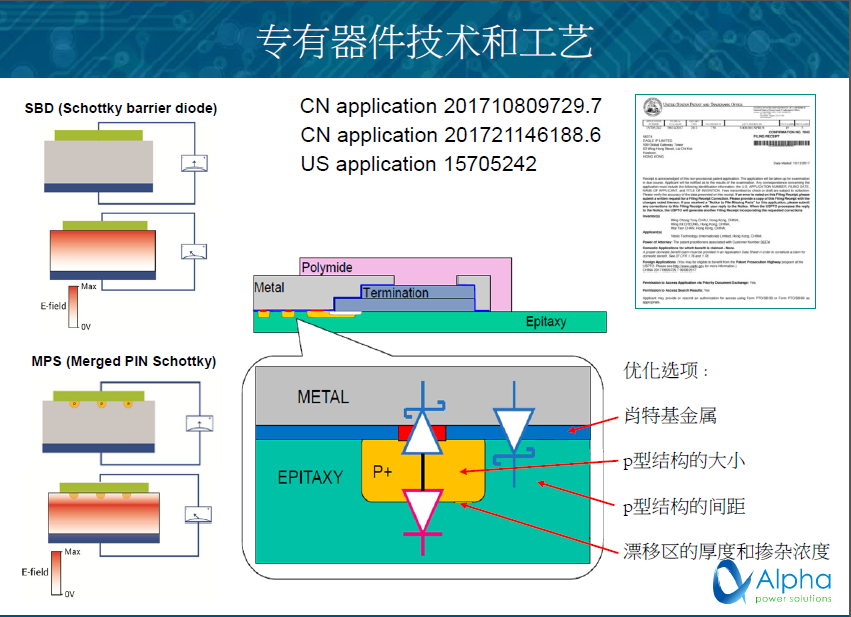

碳化硅二极管,sci二极管,碳化硅管,碳化硅肖特基二极管,碳化硅功率二极管的技术工艺是怎样的?
碳化硅二极管技术工艺完美,优化的选项有：肖特基金属,P型结构的大小,P型结构的间距,漂移区的厚度和掺杂浓度。
APS碳化硅二极管好吗?质量怎么样?

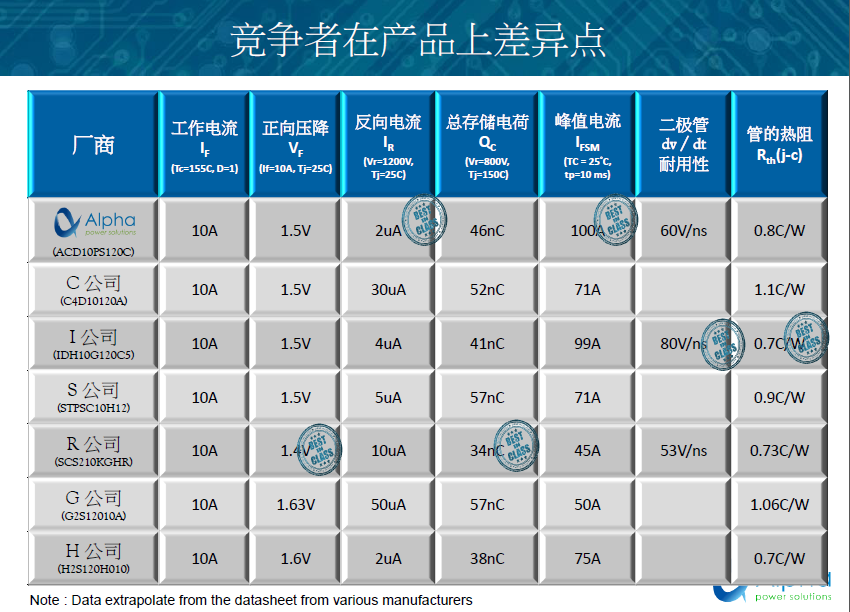

Alpha的碳化硅二极管sci二极管,碳化硅管,碳化硅肖特基二极管,碳化硅功率二极管相比之下优势如下图

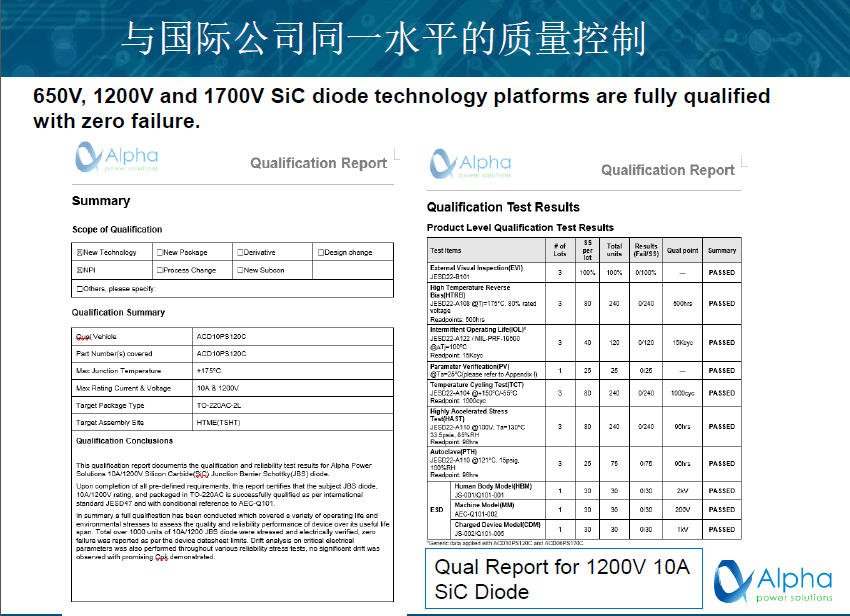

APS碳化硅二极管与国际公司同一水平的质量控制

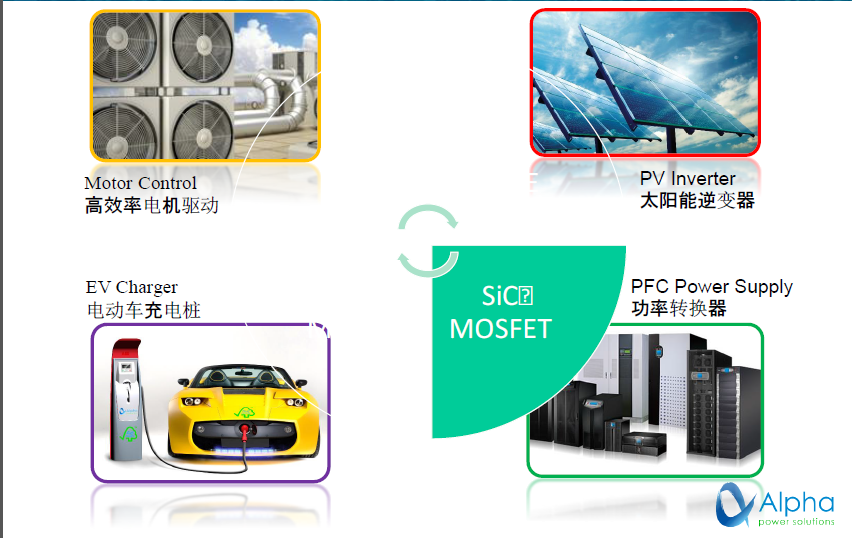

碳化硅二极管,sci二极管,碳化硅管,碳化硅肖特基二极管,碳化硅功率二极管应用在哪些方面?实用案例有哪些?

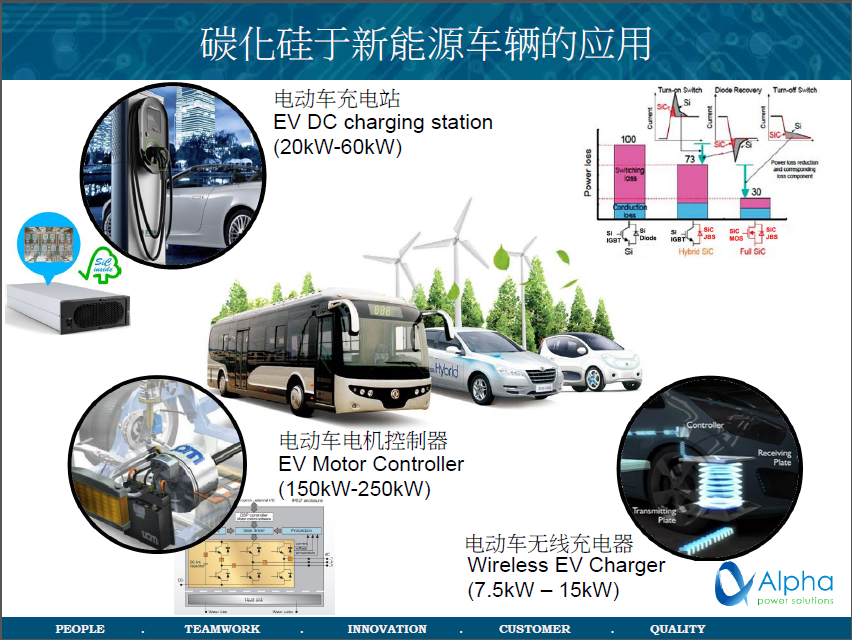

碳化硅二极管新能源汽车应用

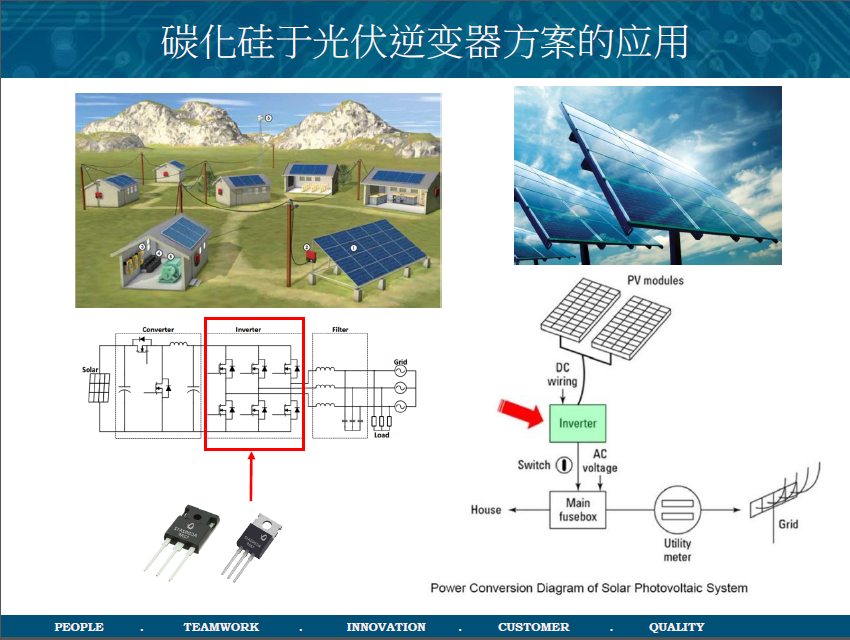

碳化硅二极管光优逆变器方案应用

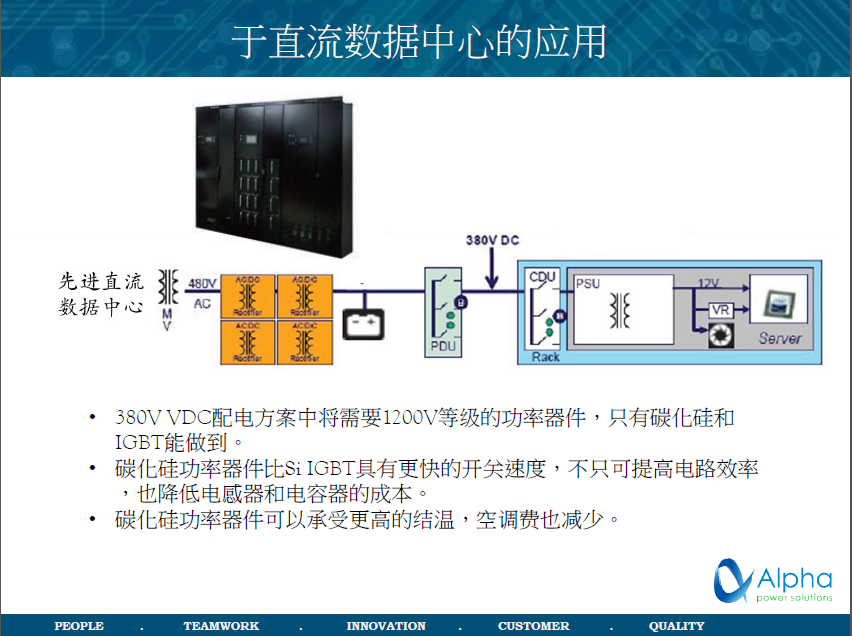

碳化硅二极管于直流数据中心应用
.png)
碳化硅二极管,sci二极管,碳化硅管,碳化硅肖特基二极管,碳化硅功率二极管选型表，如有需要可点击下方按钮下载
