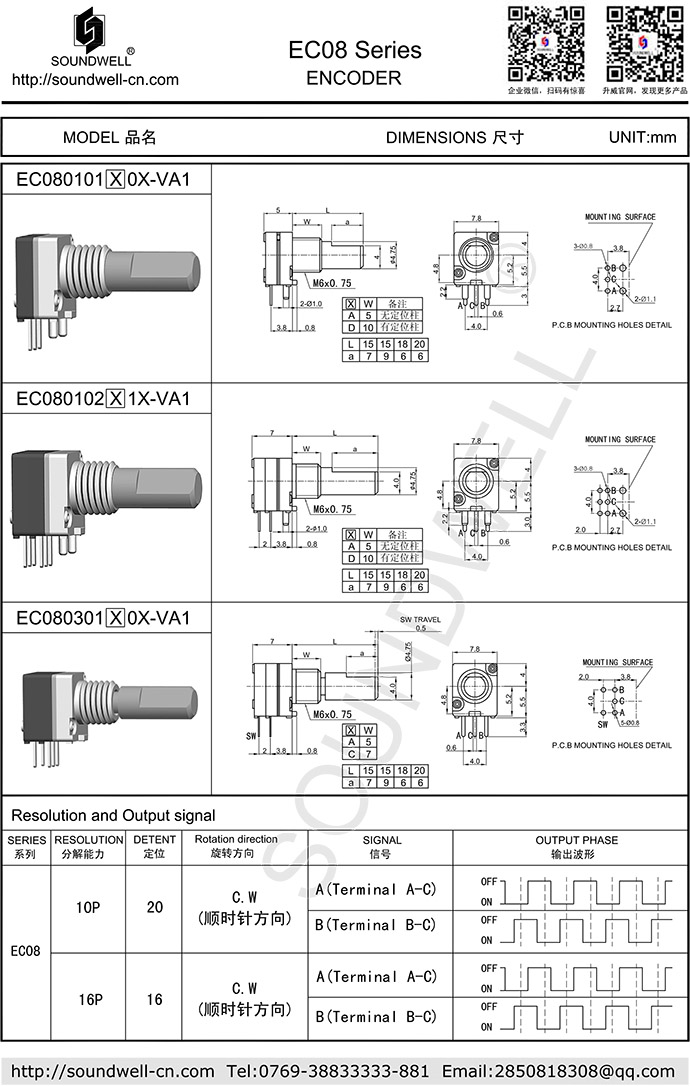

Encoder model: | EC08 |
Name: | Metal Shaft Incremental encoder |
Main Specifications: | Dimensions:8mm; Operating temperature:-20℃~80℃; Location Number:20; The number of pulses:10; Rated power:DC 5V 0.5mA; Service life:30000 More than times; The switch pushing life:20000 More than times |
Product Features: | Small size, good sealing, can with a push switch, the axis of the shape and length adjustable. |
Applications: | Mainly used walkie-talkies, radios, audio and other small electronic devices, primarily as FM, adjust the volume, switch functions, etc. |
ONE、MECHANICAL CHARACTERISTIC
1、 Rotational Torque :100~300gf.cm
2、Total ratational angle :360°
3、Number and position of detent :20 Detents
TWO、ELECTRICAL CHARACTERISTIC
1、Resolution :10 PulsesPulses
2、Phase difference :△T=0.25T±0.17T
3、Rating Power :DC 5V 0.5mA
4、Insulation Resistance :10MΩ 1 Minute at DC 50V
5、Dielectric Voltage :1 Minute at AC 50V
6、Switch Rating Power :DC 5V 10mA
THREE、ENDURANCE CHARACTERISTIC
1、Rotational Life :30,000 cycles Min
2、Switch Life :20,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
