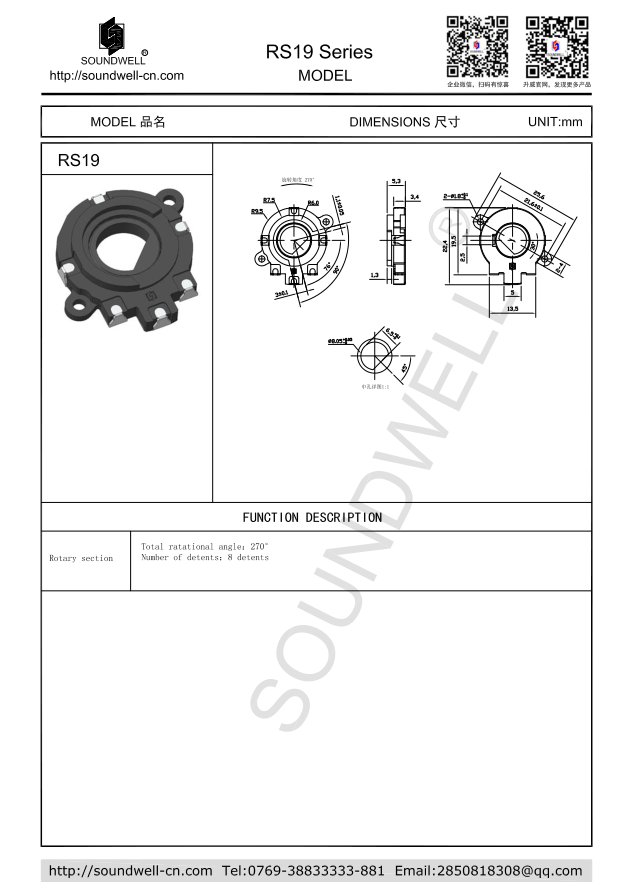

| Knob type： | RS19 |
| name： | Thin valve knob,8 position knob |
| Main specifications: |
Operating temperature：-40℃～85℃ |
| Product characteristics： | This knob is mainly in line with the customer's valve body structure to achieve positioning feel, no signal output function. |
| Application field： | Mainly used in all kinds of valve body structure or need to locate the feel of household appliances. |
一、MECHANICAL CHARACTERISTIC 机械特性
1、 Rotational Torque 旋转力矩 ：400±100 gf.cm
2、Number of detents click定位数：8 Click
3、Detent angle 定位角度：0°;、90°;、120°;、150°;、180°;、210°;、240°;、270°;
4、Shaft Stop Strength 止档强度：≥3Kgf.cm
三、ENDURANCE CHARACTERISTIC 耐久特性
1、Rotational Life 旋转寿命：30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
Note: If there is any difference between the specification and the acceptance, the acceptance shall prevail.
