RC1001NOX0A-HA1 black and white (starting point with positioning)

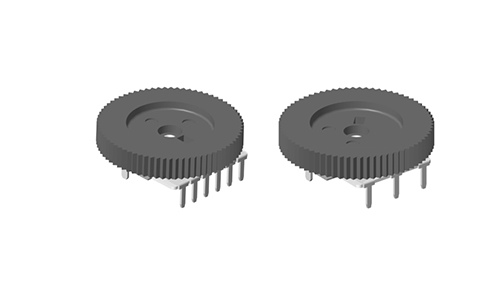

3D drawing of RC1001 with positioning products
.jpg)
RC10 Product Introduction
Series: RC10
Name: Knob-operated potentiometer
Main specifications: Dimensions:18mm
Rotation angle: 270°±10°
Rotating torque:10～90gf.cm
Rotating noise: ≤100mV
Synchronization error: -40～0dB≤±4dB
Rated power: ≤0.02W
Maximum operating voltage: DC 12V;
Working temperature: -25℃～70℃;
Rotating life: more than 10,000 times;
Product features: This product is a rotary potentiometer, with center positioning and starting point positioning, stable performance.
Application areas: This product is suitable for headphones and other related electronic equipment.
RC1001 product specifications
一、MECHANICAL CHARACTERISTIC Mechanical properties
1、 Rotational Torque Rotating torque: 10~90gf.cm
2、Total Rotational Angle Rotation angle: 270°±10°
3、Shaft Stop Strength Stop strength:0.5Kgf.cm
二、ELECTRICAL CHARACTERISTIC Electrical characteristics
1、Total Resistance Range Total resistance and error ：1KΩ＜R＜1MΩ，±20%； 1KΩ≥R or R≥1MΩ，±30%
2、Resistance Taper Resistance characteristic curve:B
3、Rating Power Rated power: 0.02W
4、Max. Operating Voltage Maximum working voltage:50V AC/20V DC
5、Residual Resistance Residual resistance: R1,2≤10Ω; R2,3≤20Ω
6、Insulation Resistance Insulation resistance: 100MΩ 1 Minute at DC 100V
7、Dielectric Voltage Withstand voltage: 1 Minute at AC 250V
三、ENDURANCE CHARACTERISTIC Durability
1、Rotational Life Rotating life：10,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",its subject to the Approval sheet.
Note: If the specifications and drawings of the manual and the approval are different, the approval shall prevail.
